Foundation Wall Stabilization and Tuckpointing — Port Byron, Illinois

A block foundation in Port Byron, Illinois had movement along its north wall and mortar joints so deteriorated that daylight showed through. Behncke Construction installed three heavy-duty steel braces with gussets, tuckpointed about 13 feet of interior wall, repaired exterior joints, and sealed a crack at the northeast corner.

PROJECT SUMMARY

Date posted: September 20, 2026
Service: Foundation wall stabilization and tuckpointing
Location: Port Byron, Illinois
Problem: Inward movement of the north CMU block wall with severely deteriorated mortar joints, some open to daylight, and a crack near the northeast corner
Solution: Three heavy-duty steel foundation braces with gussets installed; approximately 13 feet of interior wall tuckpointed; deteriorated exterior joints repaired; northeast-corner crack repaired from the exterior
Foundation type: Concrete block (CMU)
Completion status: Completed

Project photos

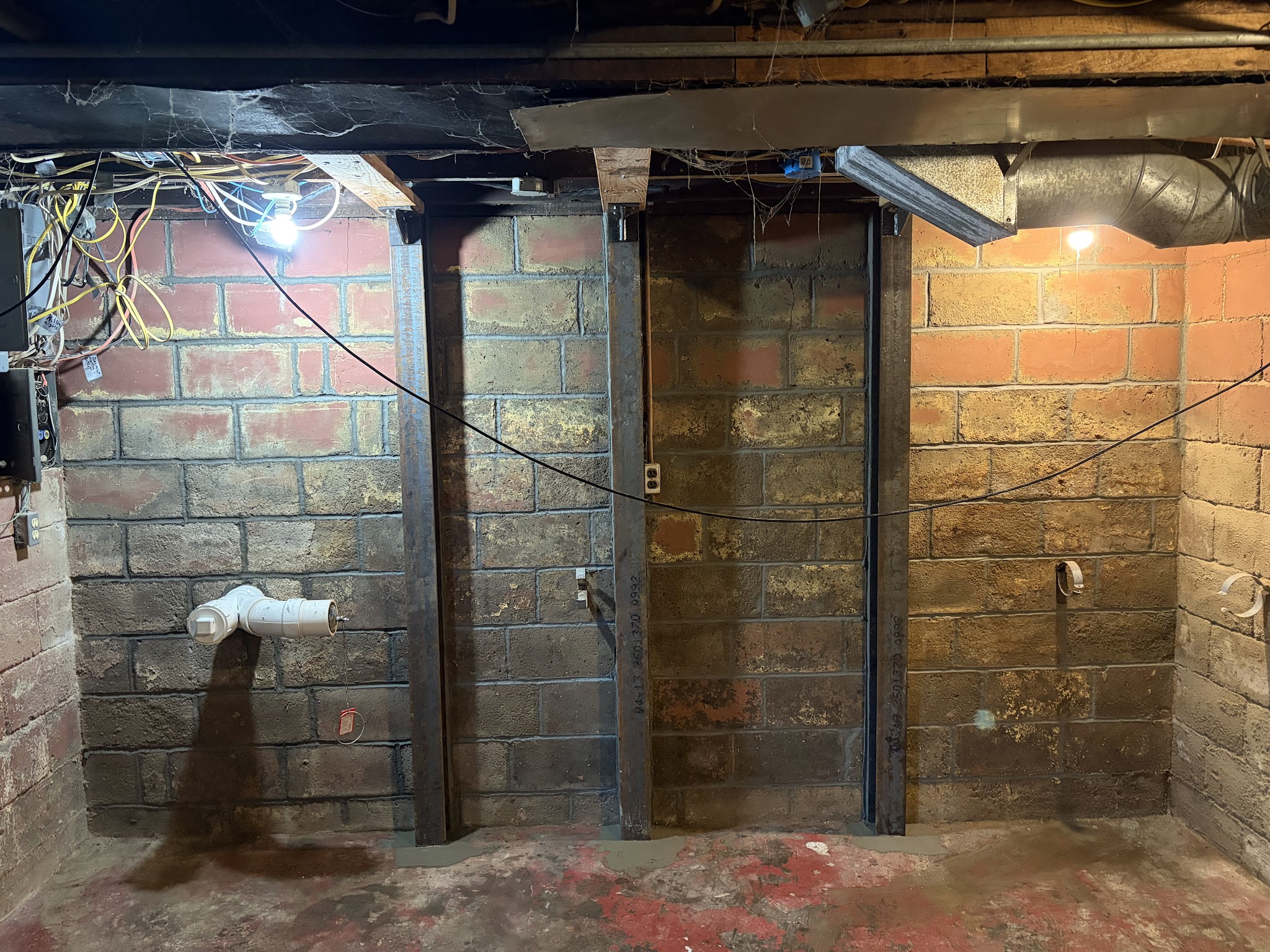

Block foundation wall in Port Byron stabilized with heavy-duty steel braces and gussets
Three heavy-duty steel braces with gussets stabilizing the north wall.

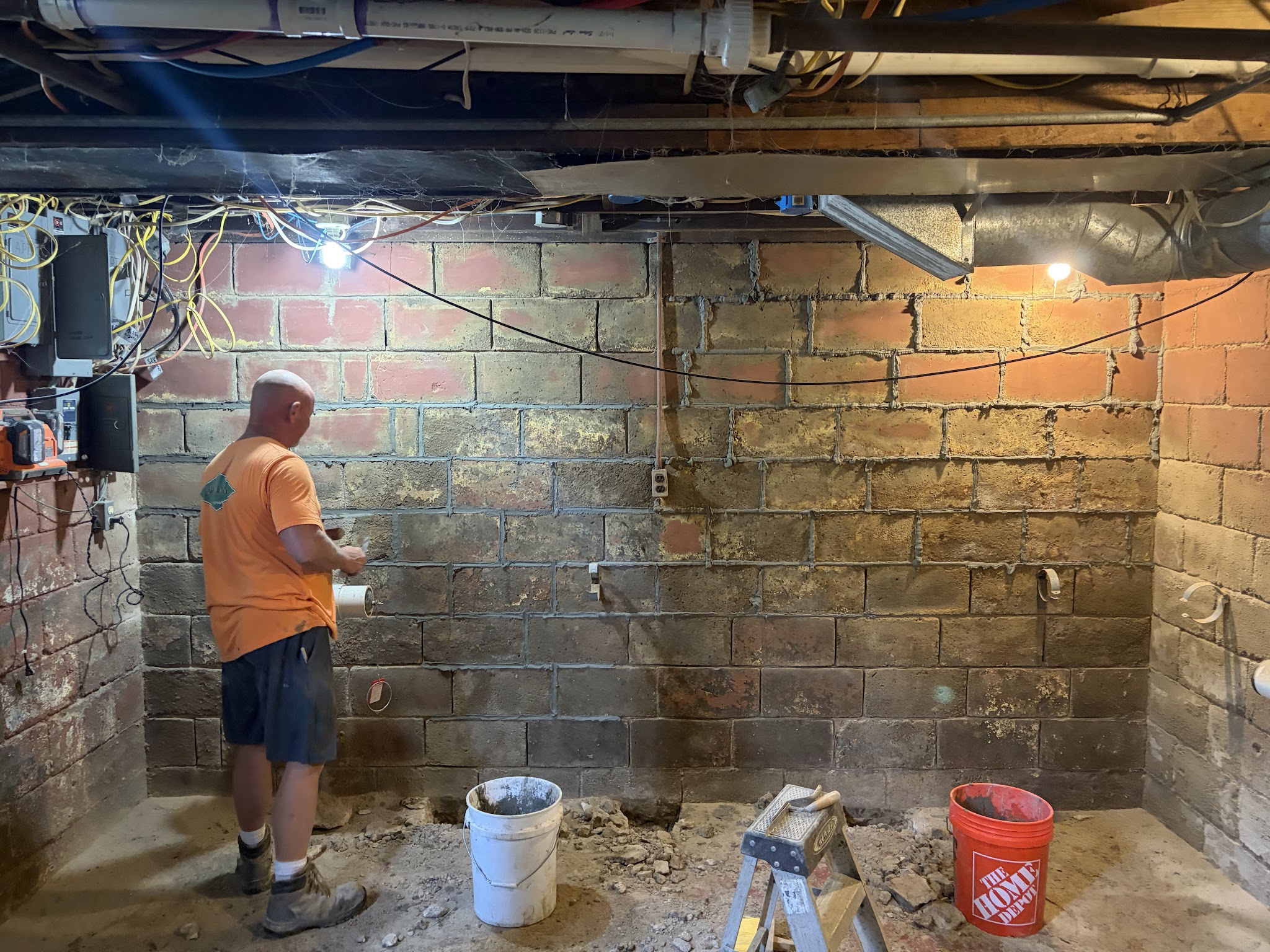

Crew member tuckpointing the interior block foundation wall beside a steel brace
Tuckpointing the interior joints beside a brace.

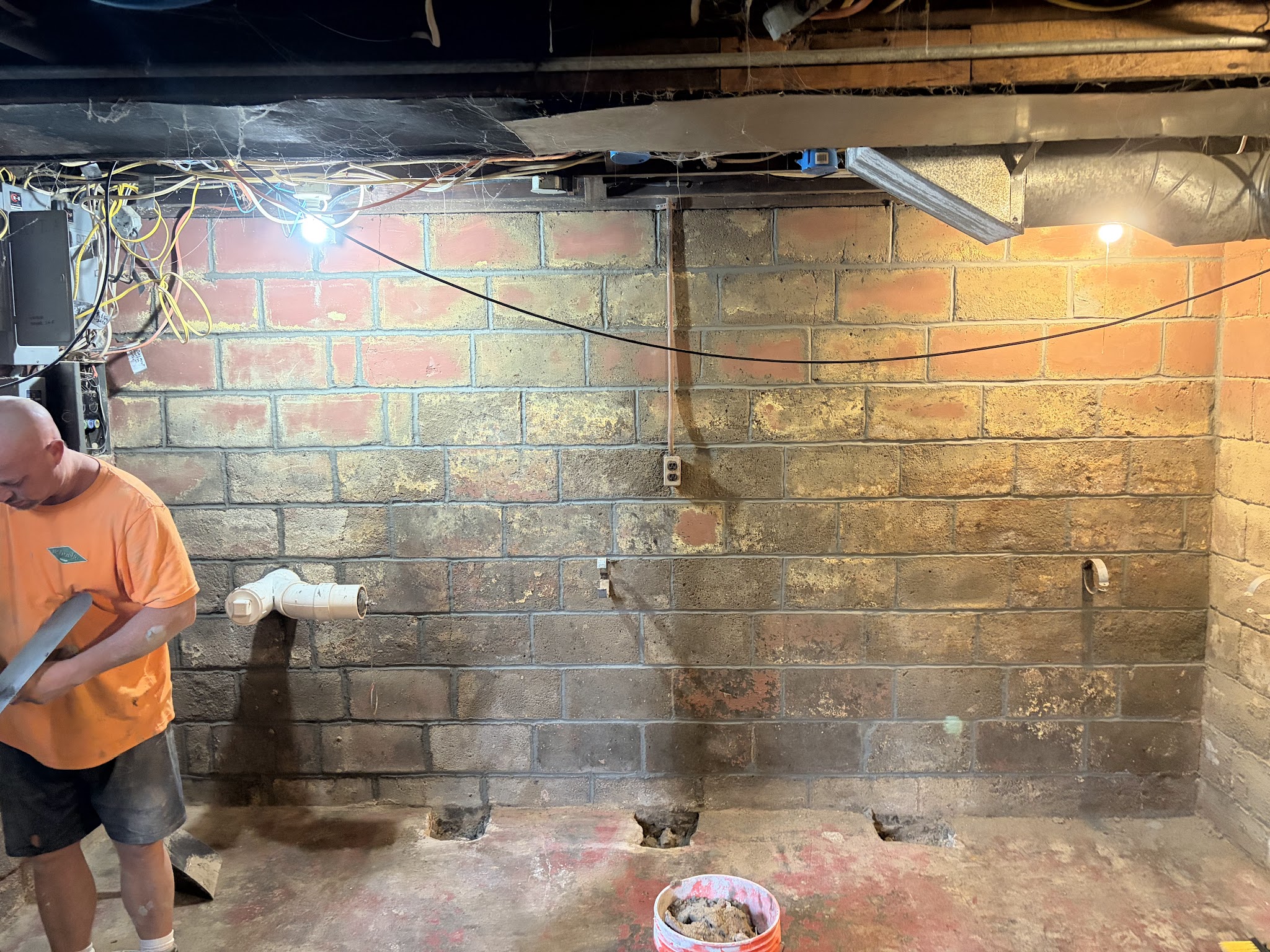

Steel foundation braces installed along the block wall during tuckpointing
The braced wall during the tuckpointing work.

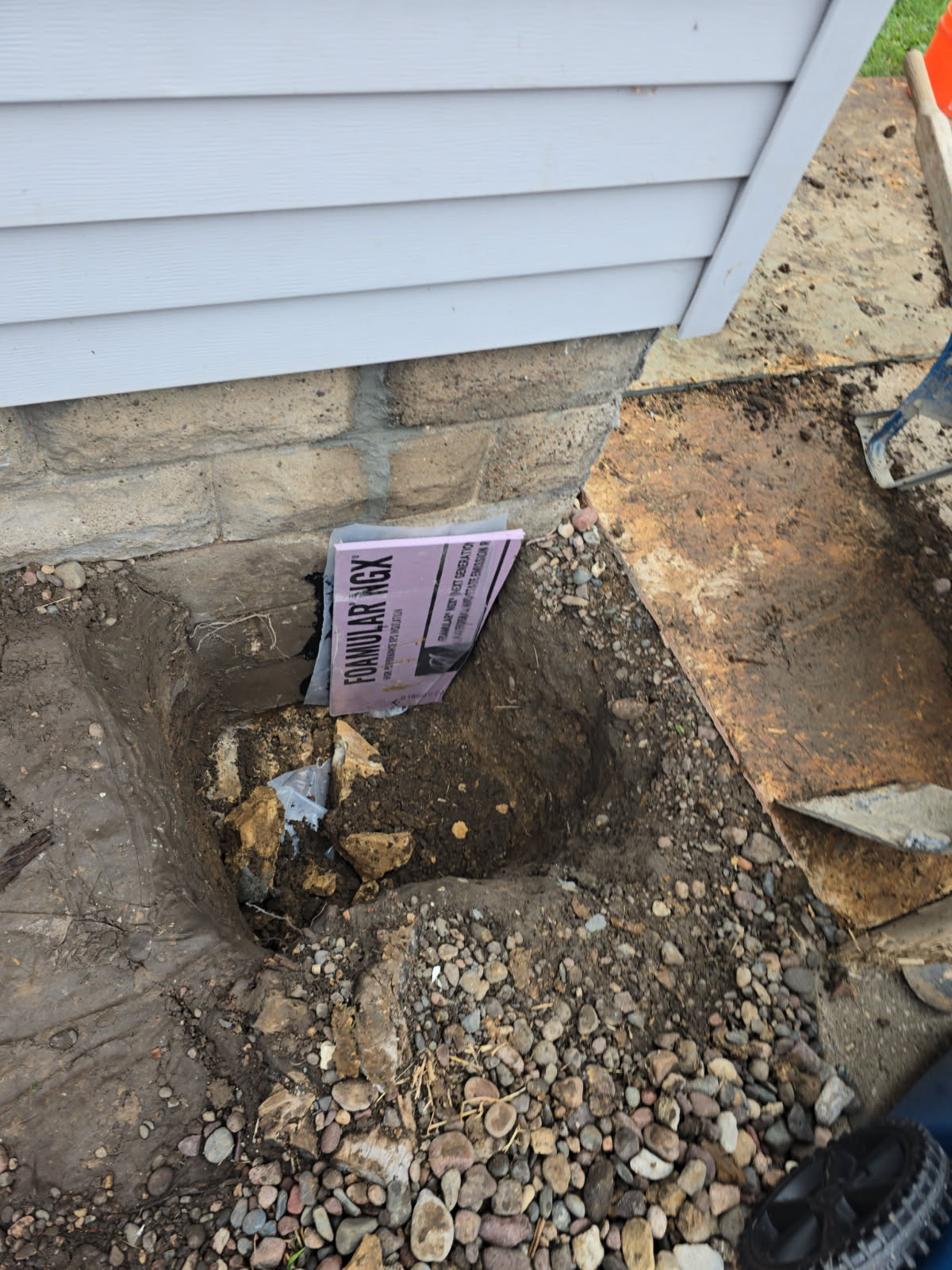

Exterior excavation at the northeast corner for the foundation crack repair
Exterior excavation at the northeast corner crack.

Project overview

This CMU block foundation in Port Byron, Illinois had developed movement along the north wall. The mortar joints were severely deteriorated, some open enough that daylight was visible through the wall, and there was a foundation crack near the northeast corner.

Project details

The crew installed three heavy-duty steel foundation braces with gussets to stabilize the north wall and resist further inward movement.

They tuckpointed approximately 13 feet of the interior foundation wall, repaired the deteriorated exterior joints, and addressed the crack near the northeast corner from the exterior.

Foundation repair is rarely one problem. Wall movement, failed mortar, cracking and exterior drainage work together, so the crew treated the foundation as a complete system rather than fixing the most visible symptom.

What homeowners should know

When mortar joints have opened far enough to see daylight, the wall has lost a large share of the strength it was built with: the blocks are no longer bonded into one unit, so soil pressure pushes them in and water moves freely through the joints. Bracing stops the movement; tuckpointing restores the bond between the blocks. Doing one without the other leaves half the problem in place.

Gussets are the triangular steel plates that stiffen the connection between a brace and the framing or slab it bears on. They matter because a brace only works if its ends cannot rotate under load. Heavier braces with gusseted connections are used where the wall’s condition and the soil loads call for more capacity than a simple bolt-on brace provides.

A crack at a corner, as here, is often where movement on one wall meets the restraint of the perpendicular wall. Repairing it from the exterior closes the water path while the bracing addresses the cause. Homeowners can read more about bowing basement walls, how wall reinforcement works and stair-step cracks in block foundations.

Photo highlights

  • Three heavy-duty steel braces with gussets stabilizing the north wall.
  • Tuckpointing the interior joints beside a brace.
  • The braced wall during the tuckpointing work.
  • Exterior excavation at the northeast corner crack.
